  1. Channels
  2. Google Chat

Installation

PreviousGoogle ChatNextFeatures

Last updated 4 years ago

Was this helpful?

Setup a Google Chat service account

are the primary way to interact with Google Cloud resources, and setting up a chatbot is no different.

The first step is to create a new Google Cloud project. Visit and fill the required fields:

In the next screen, grant the Project > Editor role to the service account:

The third step (Grant users access to this service account) is optional and can be skipped. Click on Done to create the service account.

Once the service account is created, you will need to generate a key. Select the service account, click on Add Key > Create New Key, select JSON as the Key type, and save the file.

Setup the channel in CSML Studio

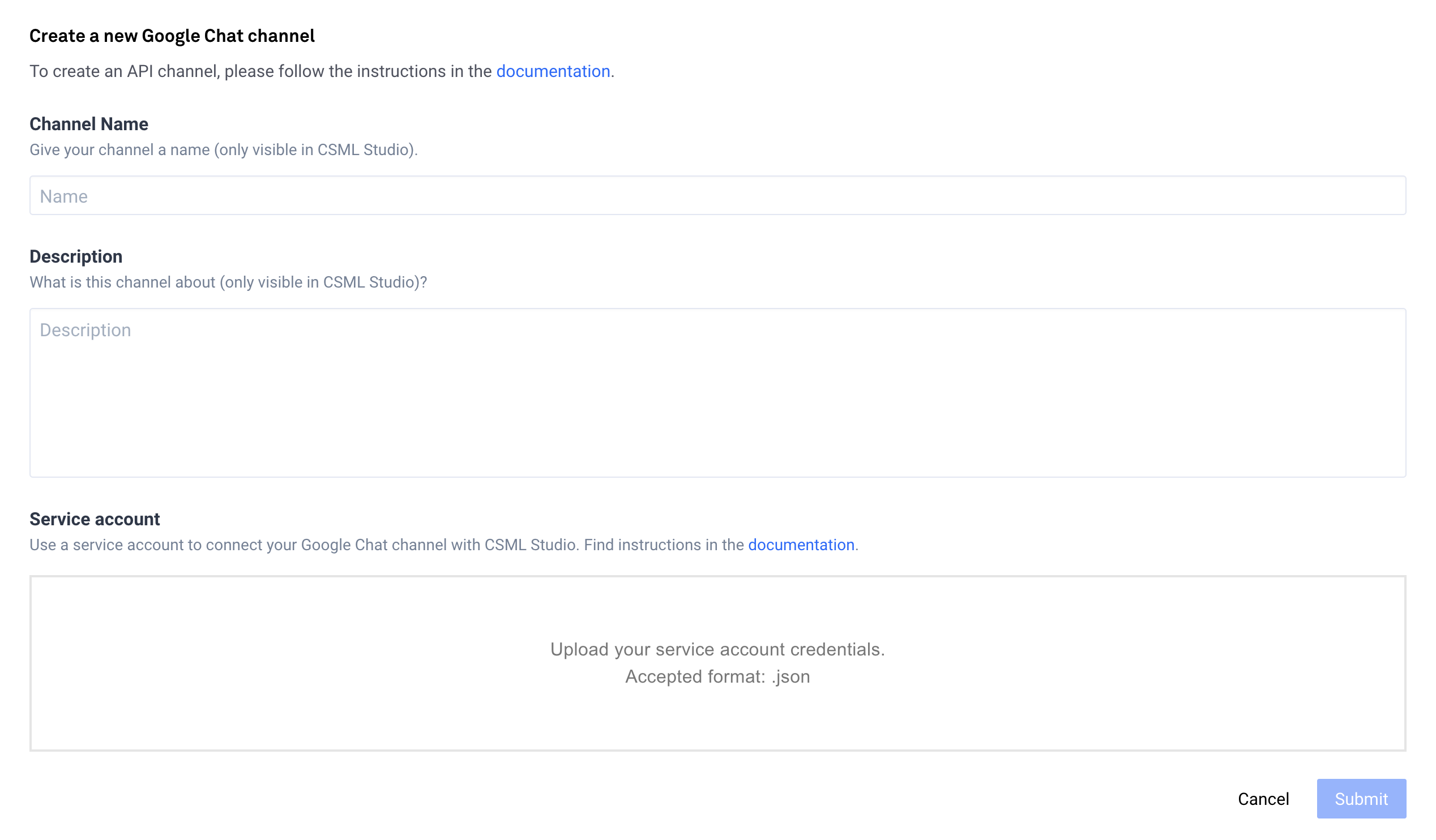

In CSML Studio, under Channels > Connect a new channel, select the Google Chat channel. In the next screen, give your channel a name, a description and upload your service account credentials.

In the next screen, you can configure the bot's Welcome Flow, and copy the Chatbot Endpoint URL, which we will use in the next step.

Connect the chatbot with Google Chat

You can select Bot works in direct messages or Bot works in rooms... depending on the experience you want to give to users.

Under Bot URL, paste the Chatbot Endpoint URL from the previous step.

Click Save, and you are all set!

Finding the bot in Google Chat

To find your bot in Google Chat, users have to navigate to the Bot catalog, which can be reached either by clicking the + icon next to the bot section of the left sidebar, or by searching for the name of the bot directly:

Upon activating the bot for the first time, the Welcome Message will be displayed:

Then, to enable the Google Chat API for this project:

Then, go to Identity > Service Accounts in the menu (or visit ) and create a service account for the project.

To finalize the configuration, visit (make sure that the selected project is still the same one as before) and fill the information as requested.

📱
visit this page
https://console.cloud.google.com/identity/serviceaccounts
https://console.developers.google.com/apis/api/chat.googleapis.com/hangouts-chat
Service accounts
https://console.cloud.google.com/projectcreate
